Application

• Inside Duct, Pulled or Blown

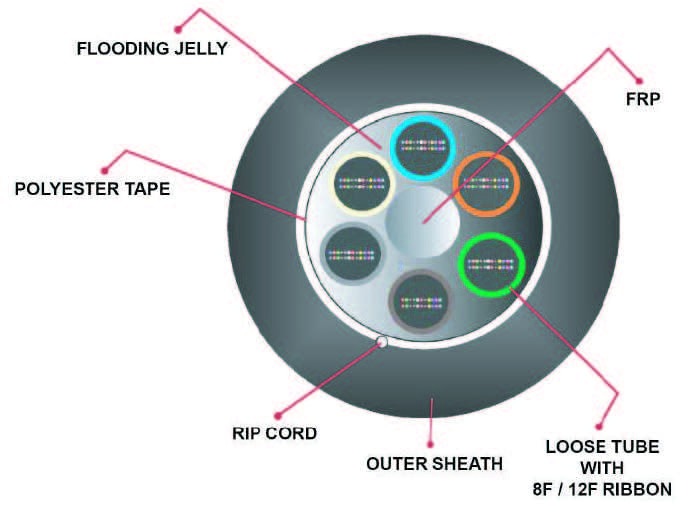

Typical Cross section of 2-12 Fibre

Cable Construction Details

• 288 low water peak single mode fibres in compliance with ITU-T-G.652D
• Metallic / Non metallic element used as central strength member for Tensile Strength
• Loose buffer tubes jelly filled and S-Z stranded
• Cable core filled with jelly & S-Z core wrapped with polyester tape
• UV stabilized PE outer sheath, black.

Technical Characteristics

Fibre & Tube colour coding

Blue

Orange

Green

Brown

Slate

White

Red

Black

Yellow

Violet

Pink

Aqua

*More than 12 fibre we provide black Ring mark above the coloured fibre.

Variants

Mechanical Characteristics

• Cable can be supplied with single mode (ITU-T-G655, and G657) & Multimode (50µm & 62.5µm)
• Outer Jacket can be of PVC, LSZH, and HDPE
• Strength member can be Steel or FRP

• Temperature Range
• Laying & Installation
• Operation

• (IEC 60794-1-2-F1)
• -10°C to +50°C
• -20°C to +60°C

Cable Bending Radius (IEC 60794-1-2-E11A)​

Tensile Force (IEC 60794-1-2-E1)

• During Installation
• Installed
• Repeated Bending (IEC 60794-1-2-E6)

• D=Cable Diameter

• 20D*
• 15D*
• 30 Cycle, r=20D*, 5 Kg, Load

• During Installation
• Installed
• Torsion Resistance
  (IEC 60794-1-2-E7)
• Crush Resistance
  (IEC 60794-1-2-E3)
• Kink Resistance
  (IEC 60794-1-2-E10)
• Water Penetration
  (IEC 60794-1-2-F5B)

• 3000 N
• 1500 N
• 10 Cycle (± 360°) 5 Kg weight,
  L=1 Mtr
• 1500 N (100 X 100 mm) for 60 sec
• 15D*
• 1 Mtr Water Head, 3 Mtr Cable Sample, 24 Hours

Drum Length

• 3000meters ± 5%
