National, regional & metro transport
Telecom backbone networks
Backbone design begins with route protection, fibre capacity and restoration strategy. OFS can configure duct or armoured constructions around the installation method, mechanical duty and approved network standard.
Network path
Design each section as part of the whole.
The cable role changes along the network. Use the complete path to define capacity, protection and installation duty.
2
Long-haul route
Confirm the route, network role and required interface at this stage.
3
Regional node
Confirm the route, network role and required interface at this stage.
4
Metro ring
Confirm the route, network role and required interface at this stage.
Design priorities
Decisions that shape the cable.
01
Capacity planning
Allow for the commissioned fibre count, dark-fibre allocation and practical network growth.
02
Route protection
Match armour, sheath system and water blocking to duct, trench and ground conditions.
03
Section engineering
Confirm pulling length, drum plan, joint locations, bend limits and installation tension.
Suitable starting families
Compare cable platforms for this network.
These families are practical starting points, not automatic final selections. The approved project TDS determines the supplied construction.
Optical fibre
Multi-Tube
High-capacity duct networks
Fibre range
Up to 144 fibres
Optical fibre
Armoured Multi-Tube
Direct-buried and duct networks
Fibre range
Up to 144 fibres
Optical fibre

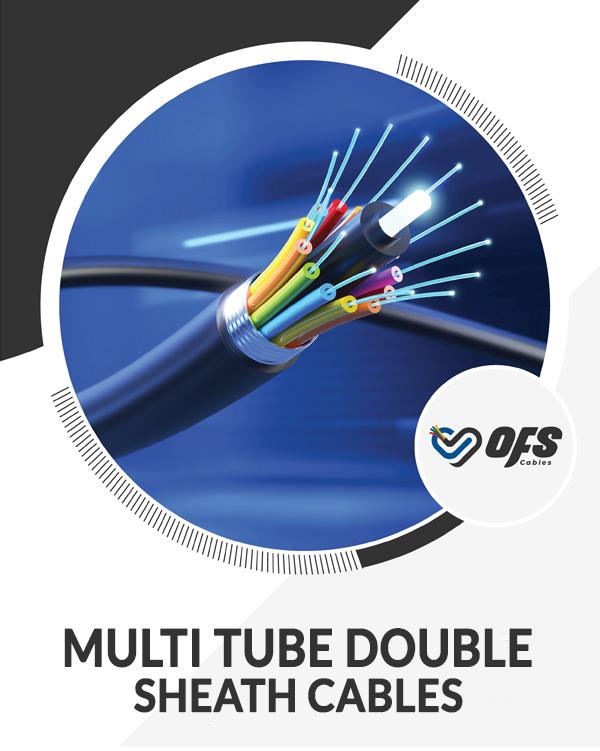

Double Sheath
Severe direct-buried and duct environments
Fibre range
Up to 144 fibres
Optical fibre

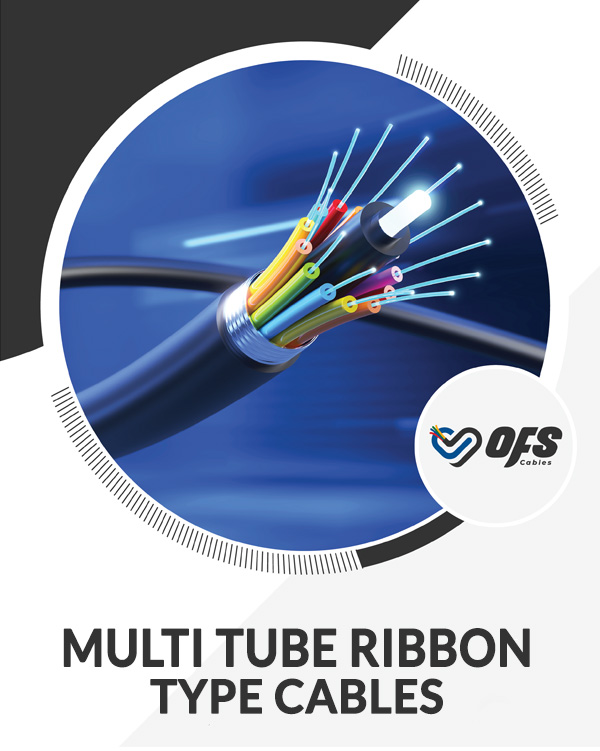

Ribbon
High-density duct and backbone networks
Fibre range
Up to 144 fibres
Prepare the review
Information OFS Engineering needs.
Providing the route and performance basis early makes product selection, TDS preparation and commercial review more accurate.
Route survey and installation method
Required fibre count and fibre type
Maximum drum and pulling section
Mechanical and environmental standard
Duct, soil and water conditions
Testing and documentation requirement
