Choose this family when
- One route must carry optical and copper connectivity
- The project needs a combined compact cable
- A customer-specific hybrid construction is acceptable
Speciality

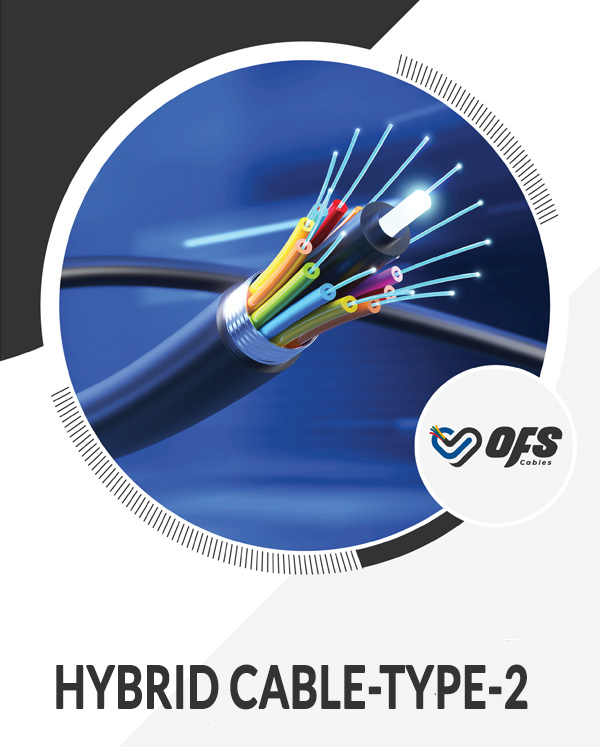

Hybrid Cable 4F + 5 Pair
Combined optical and copper connectivity
Application
Combined optical and copper connectivity
Available range
4 fibres + 5 copper pairs
Supply basis
Approved customer TDS
Construction overview
Designed from the route requirement outward.
Four G.652D fibres in a PBTP loose tube plus five 0.50 mm copper pairs around an FRP central member.
This product is a configurable cable platform. Fibre type, materials, reinforcement, marking and packaging can be adapted where the selected construction and applicable standards permit.
Selection guidance
Is this the right starting point?
Confirm before design
- Optical and copper performance requirements
- Power or signalling duty of the copper pairs
- Termination, safety and applicable project standards
Representative specifications
Project-specific values confirmed by OFS Engineering.
This product family is available for project review. Dimensions, weight and guaranteed mechanical performance are issued only in the approved project TDS after the route and construction are confirmed.
Controlled technical data
Send the installation environment, fibre count, span or route duty and applicable standard. OFS will return the controlled specification for approval.
Request the product TDSControlled specification
The approved TDS controls every order.
Online information supports selection. Before production, OFS converts the route, performance and commercial requirement into a formal construction for customer approval.
01
Requirement
Route, fibre count, environment and standards
02
Design
Materials, dimensions and performance review
03
Approval
Customer-approved Technical Data Sheet
04
Production
Manufacturing, tests and dispatch records
